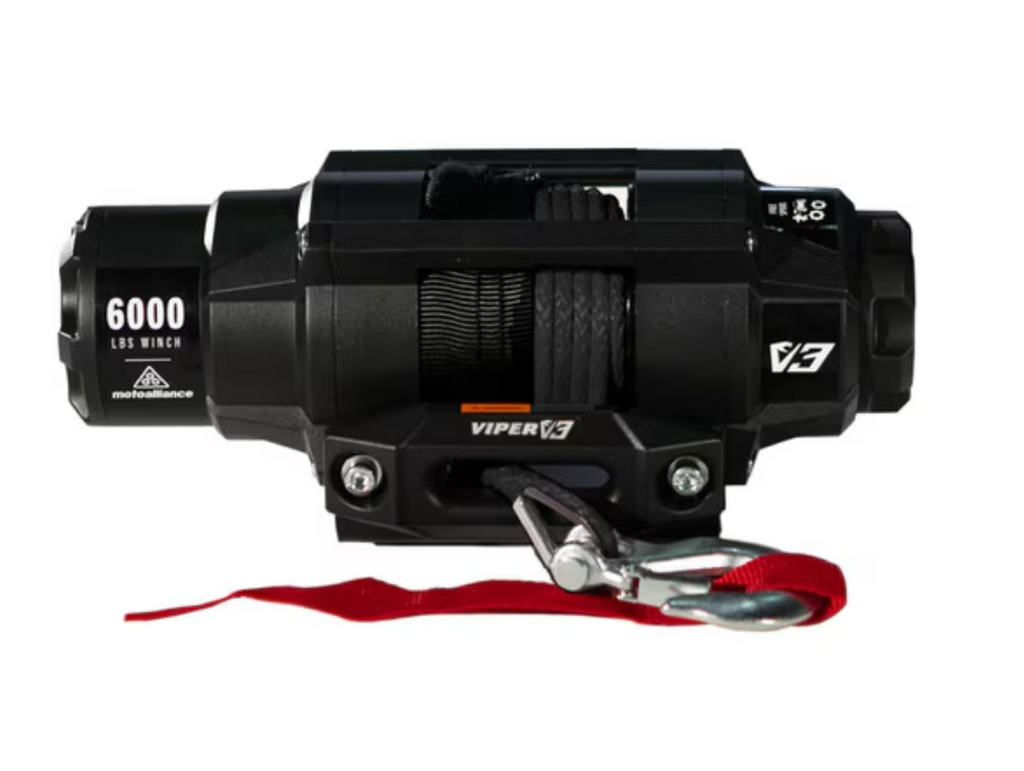

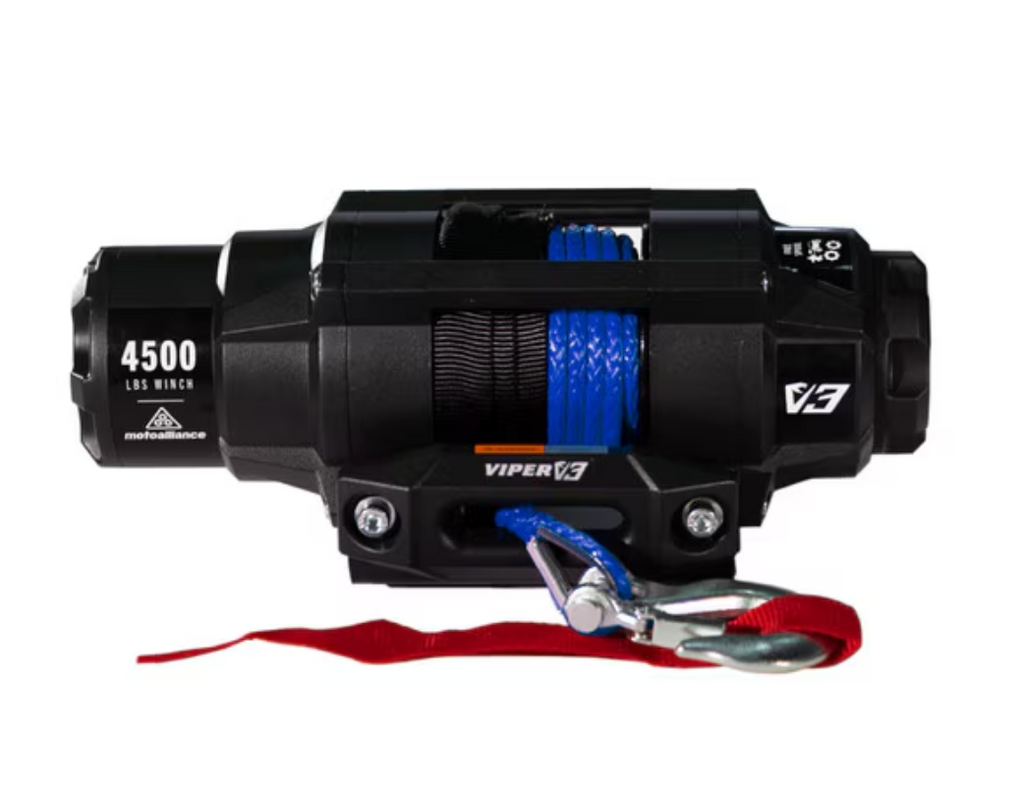

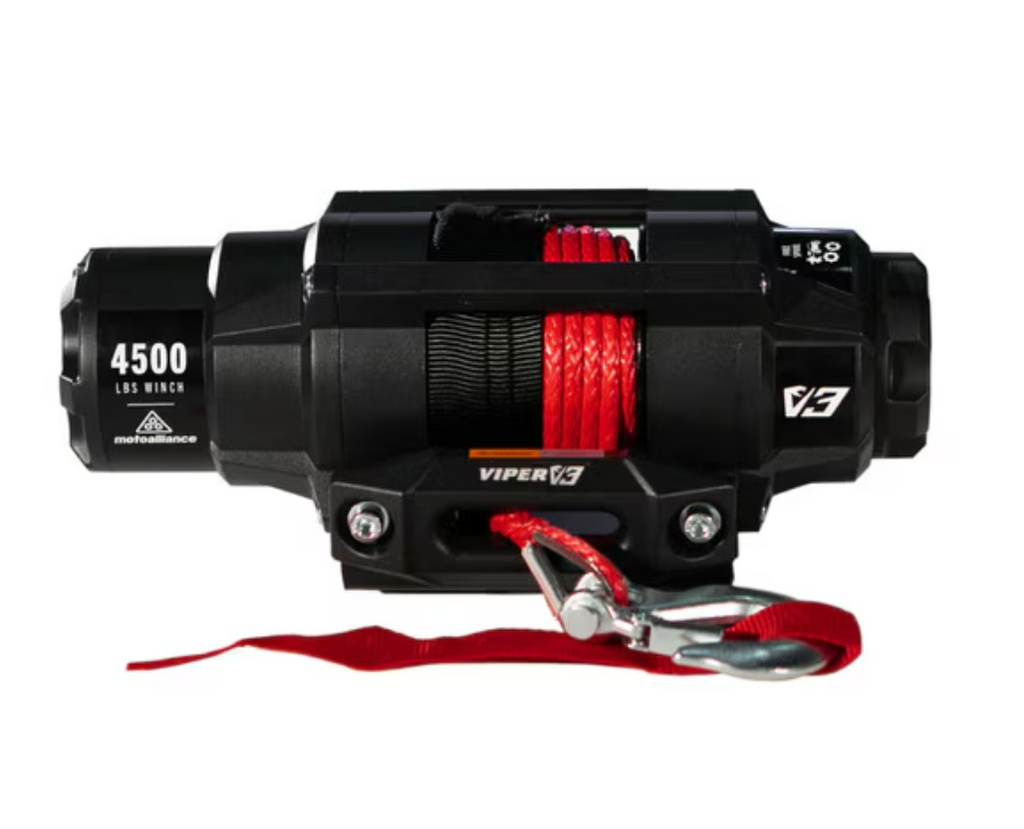

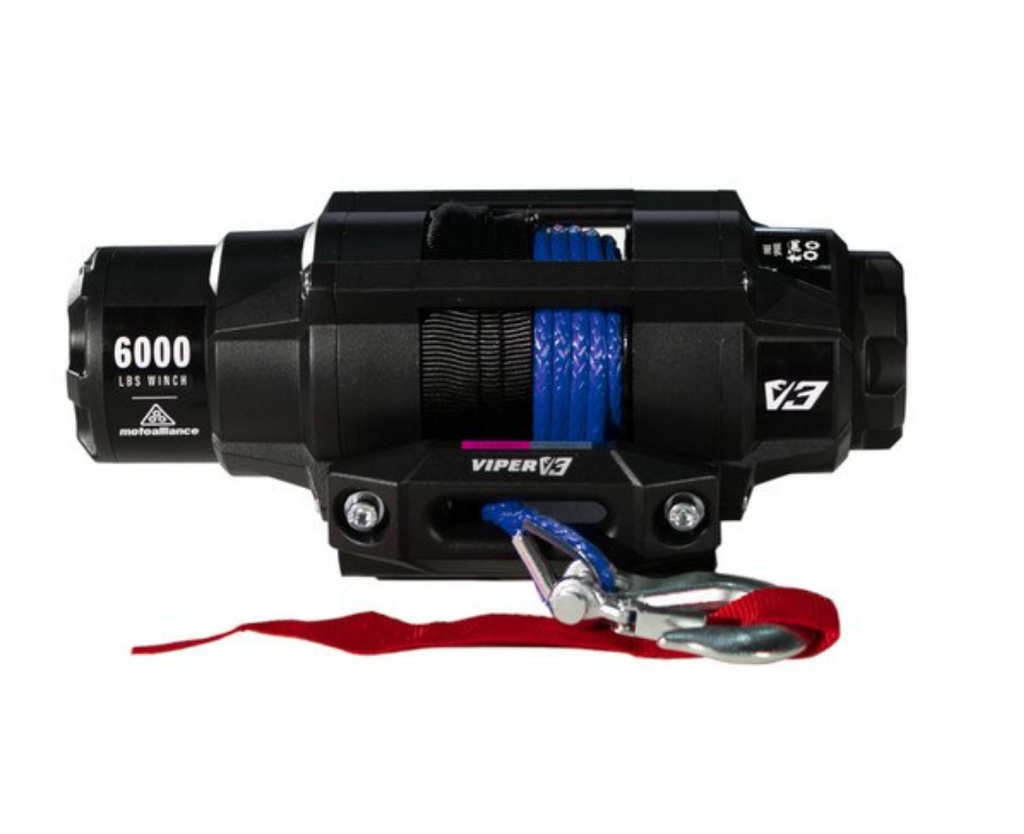

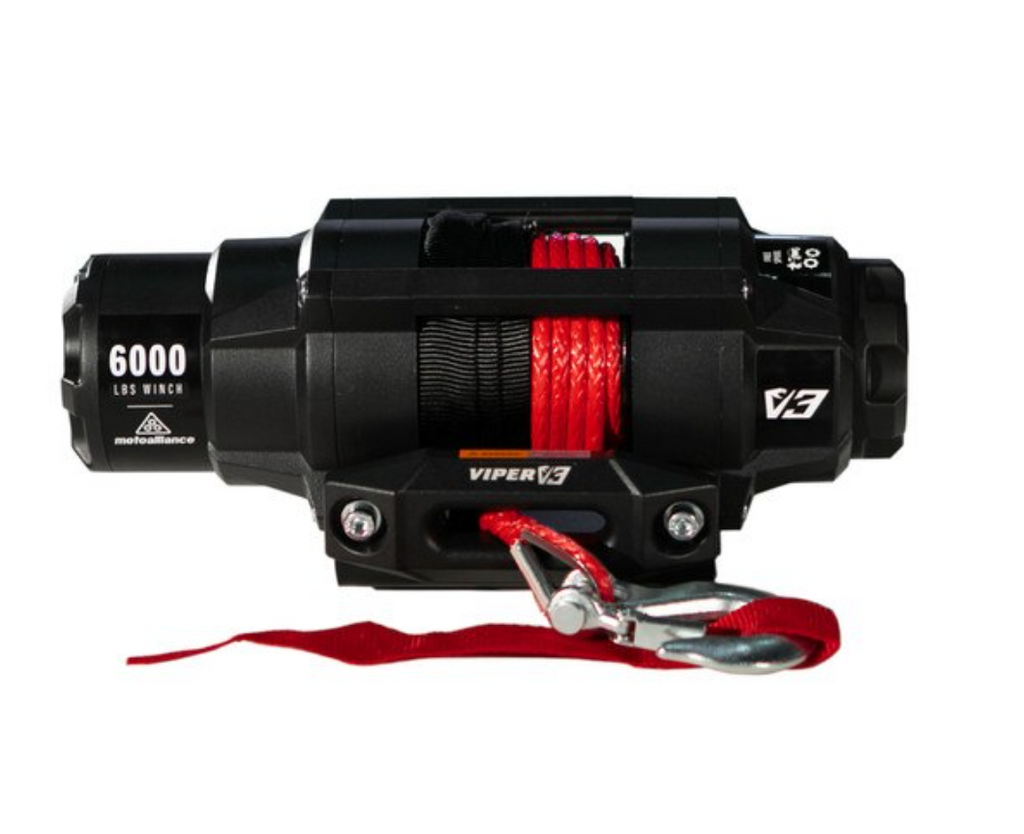

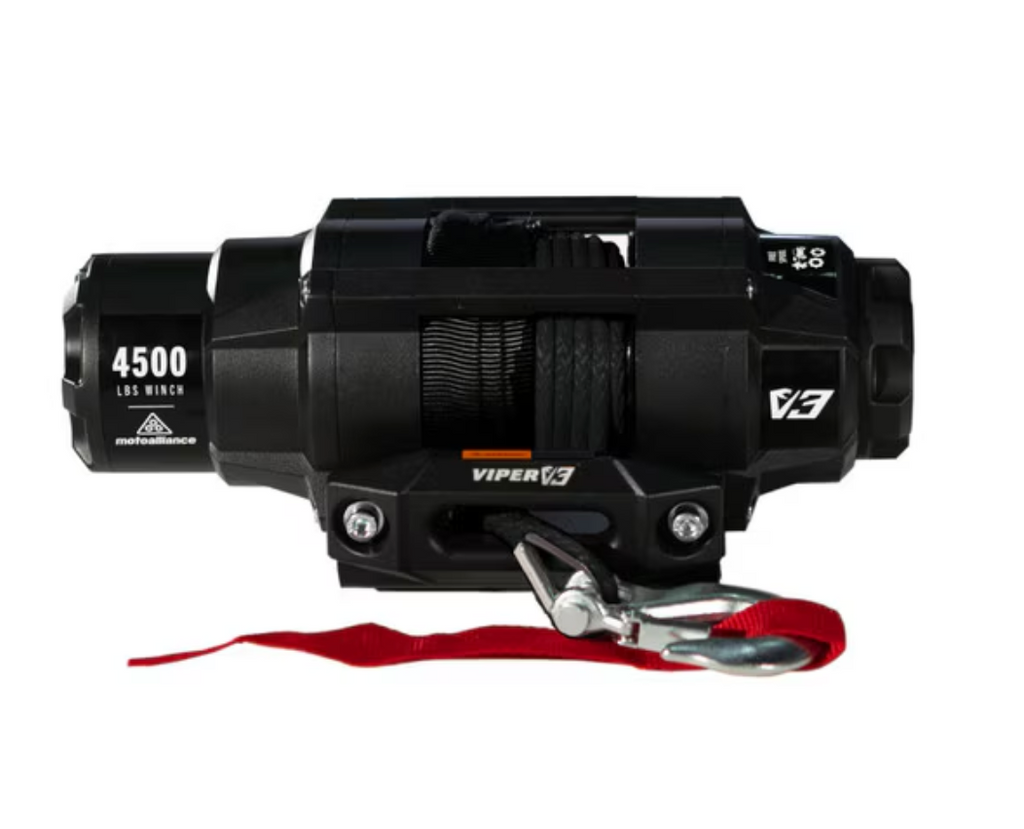

Check out the sleek and rugged Viper V3 winch -- the NEWEST in the family of trusted VIPER Winches by Motoalliance
The VIPER V3 boasts a modern cutting-edge look that is a great match for next-gen machines, and the tight footprint with recessed terminals allows installation in even the tightest of spaces.
The V3 sealed with an IP67 waterproof rating, constructed with durable corrosion-resistant aluminum, and made with military-grade raw materials for exceptional durability and performance. Every V3 comes with a wireless remote switch to make winching operations safer and more convenient.
The V3 has also been designed to impress in every component -- from the high contrast decals, the matte finish on the winch body and laser-etched fairlead, to the multiple synthetic rope colors to match your machine.
The VIPER V3 is a great choice for discerning riders who love to push their machines to the limits while having a rugged, great-looking winch to rescue them out of sticky situations.
Features:
- • IP67 Waterproof Rating
- • Wireless Remote System with unique frequency
- • Planetary metal gear train and permanent magnet motor
- • Automatic brake
- • Limited One Year Warranty (6 Month Warranty on Rope)
Kit Contents:
- • 40' x ¼" diameter Synthetic Cable
- • Aluminum Hawse Fairlead
- • Wireless Remote Switch
- • Contactor & Wiring
- • Clevis Hook
- • Rocker Handlebar Switch
- • Hand Saver Strap
- • Installation Hardware and Instructions
Specs
- • Cable - Synthetic, 5,400lb max load rating
- • Motor - 12V DC, Sealed permanent magnet
- • Gearing / Gear Ratio - 3-Stage planetary
- • Brake - Automatic, 100% load holding
- • Clutch - Sliding Ring Gear
- • Wiring - 6 gauge (English)
- • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
- • Mounting Bolt Pattern - 3.0 inch x 6.6 inch (76mm x 169.42mm)
- • Dimensions:
- •13.3 (L) x 4.75 (H) x 4.6 (D) inches
- •17 lbs
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV/ UTV / SxS. We have many custom mount plates designed to bolt on to your ATV/ UTV / SxS.
