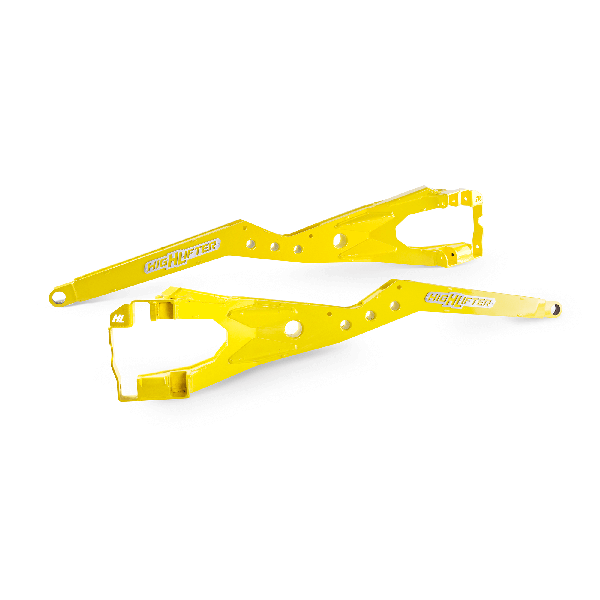

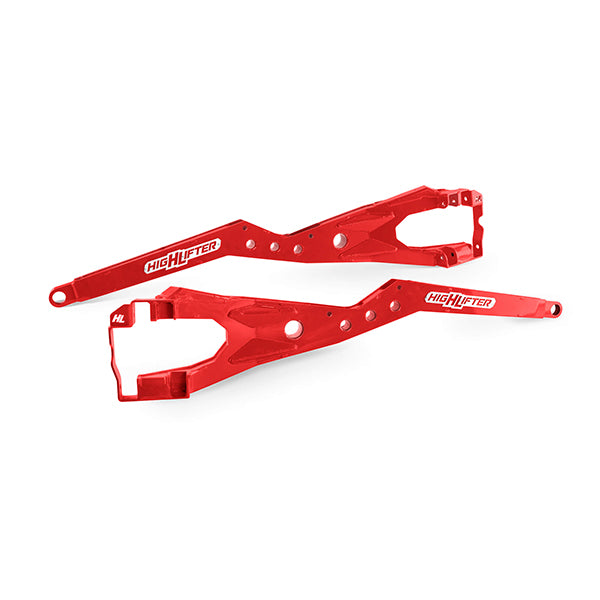

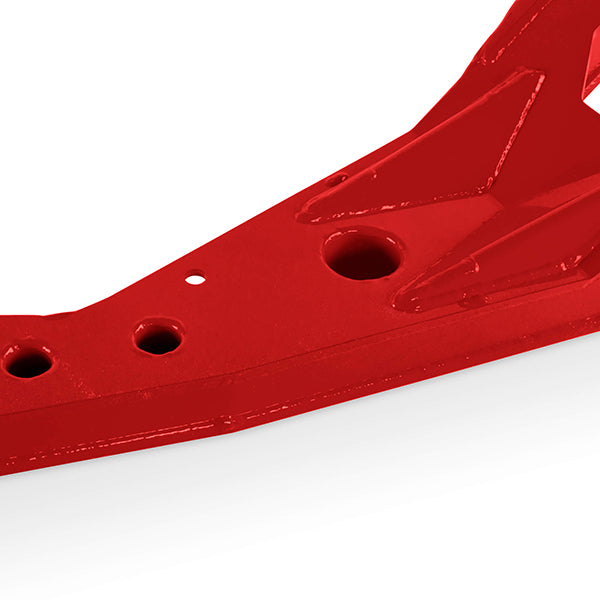

High Lifter's new APEXX Trailing Arms provide more clearance and are much more rigid than stock arms. With our trailing arms, your rear tires will easily roll over most anything in their path. High Lifter’s research and development team engineered the trailing arms to give you 2 ½” of added clearance where you need it the most – right in front of your rear tires. Our arched design eliminated most of the drag and scraping that can be seen in some of the roughest and rockiest terrain. Our trailing arms keep the driveline angles the same as stock with no added wear and tear to other parts. These are a great choice for replacing stock trailing arms and will hold up whether you are trail riding or racing.
Features:
- 2.5" of added ground clearance
- 3/16” Boxed laser cut and CNC bent carbon steel
- Internally cross braced and gusseted for added strength and reduced stress concentration
- All mounting points same as the OEM.
- 3/8” Hub mounting plate to eliminate deformation
- Double shear sway bar tabs
- Added ground clearance
- Mounting holes for OEM brake line tabs
- Precision laser cut steel construction
- Easy bolt-on kit complete with photo instructions
- One kit replaces both trailing arms

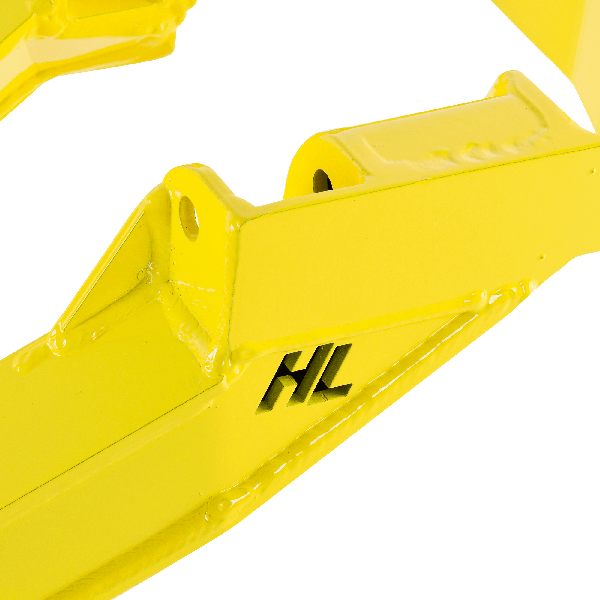

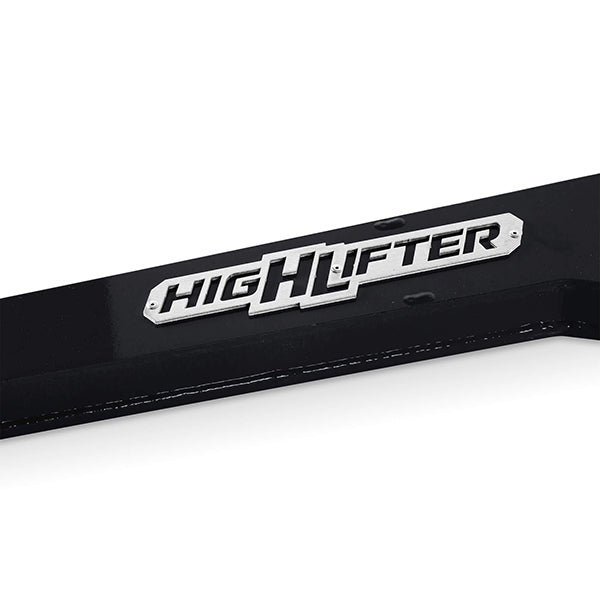

- High Lifter Logo riveted to the control arm
- Powder Coated
- Limited Lifetime Warranty
Note: Be sure to check for worn bearings, bushings, etc. before installation and replace them if needed.
FITMENT:
2017 Can-Am Maverick X3 MAX XRS
2017 Can-Am Maverick X3 XRS
2018 Can-Am Maverick X3 Turbo R MAX XDS
2018 Can-Am Maverick X3 Turbo R XRC
2018 Can-Am Maverick X3 Turbo R XRS
2019 Can-Am Maverick X3 Turbo R MAX XRS
2019 Can-Am Maverick X3 Turbo R XMR
2019 Can-Am Maverick X3 Turbo R XRC
2019 Can-Am Maverick X3 Turbo R XRS
2020 Can-Am Maverick X3 Turbo R MAX XRS
2020 Can-Am Maverick X3 Turbo R XRS
2020 Can-Am Maverick X3 Turbo RR MAX XMR
2020 Can-Am Maverick X3 Turbo RR MAX XRS
2020 Can-Am Maverick X3 Turbo RR XMR
2020 Can-Am Maverick X3 Turbo RR XRC
2020 Can-Am Maverick X3 Turbo RR XRS
2021 Can-Am Maverick X3 Turbo MAX R RS
2021 Can-Am Maverick X3 Turbo MAX RR XMR
2021 Can-Am Maverick X3 Turbo MAX RR XRS
2021 Can-Am Maverick X3 Turbo R RS
2021 Can-Am Maverick X3 Turbo RR XMR
2021 Can-Am Maverick X3 Turbo RR XRC
2021 Can-Am Maverick X3 Turbo RR XRS
2022 Can-Am Maverick X3 MAX RS Turbo RR 72
2022 Can-Am Maverick X3 MAX XMR Turbo RR 72
2022 Can-Am Maverick X3 MAX XRS Turbo RR 72
2022 Can-Am Maverick X3 RS Turbo RR 72
2022 Can-Am Maverick X3 XMR Turbo RR 72
2022 Can-Am Maverick X3 XRC Turbo RR 72
2022 Can-Am Maverick X3 XRS Turbo RR 72
