Our GMC, 1500 (19-On), 2500 and 3500 (20-On) kits were designed specifically to keep a low profile while allowing for maximum performance. The kit includes mounts that fit into factory locations without cutting or trimming and includes both the wiring and a 20 inch S8 Driving / Combo for an easy install.
With the S8 you will be able to utilize its back lit feature giving a differentiating look from other trucks!
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 Percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 19,050 Utilizing 24 Cree LEDs
- Wattage/Amps: 180W / 12A
- Dimensions: 30 Inch x 3 x 1.6 Inch
- Weight: 6.5 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
(S8 Patent D780,964)

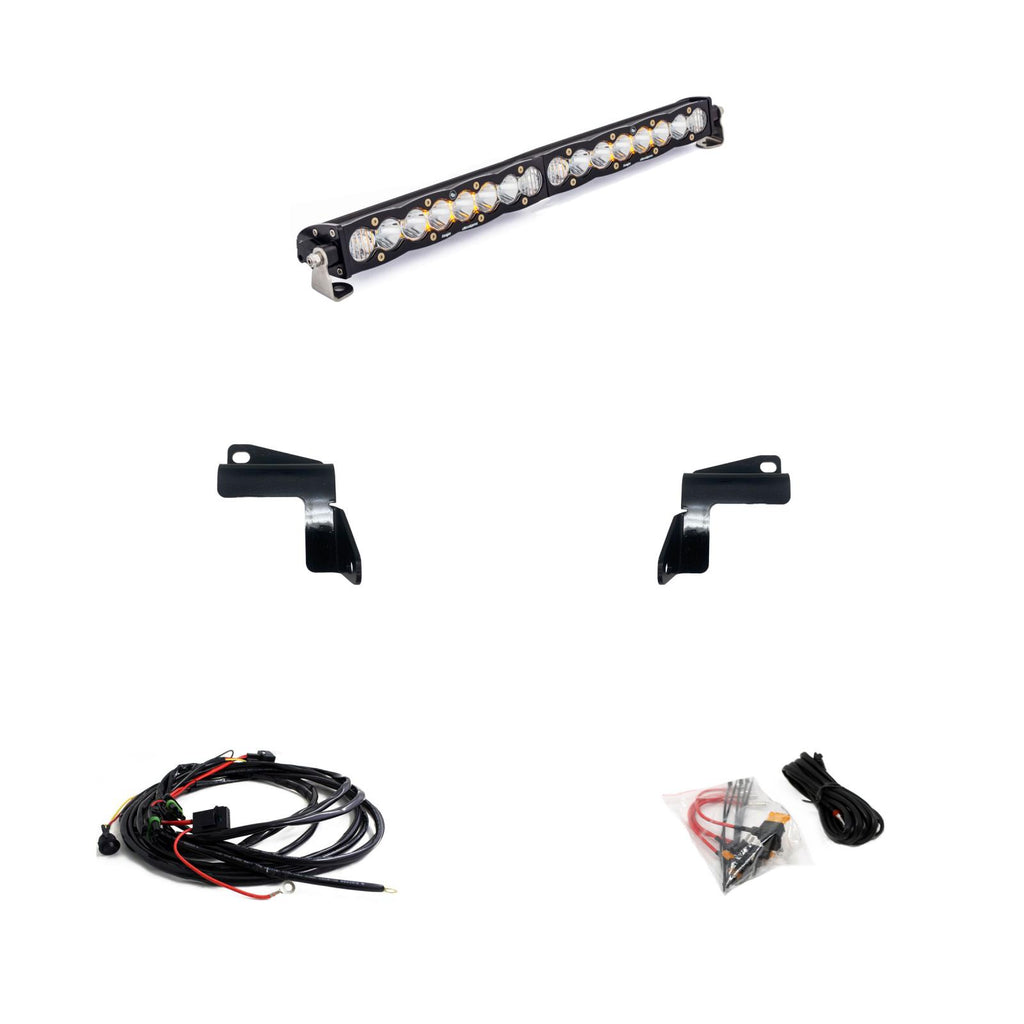

Kit Includes:
- S8 30 inch Driving Combo
- Wiring
- Hardware
- Brackets
Application:
GMC, 2500 and 3500 20-On
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
