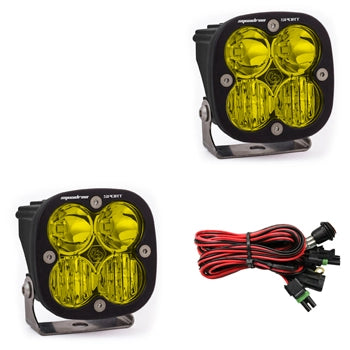

Baja Designs Squadron Sport, Pair Amber Driving/ Combo LED 557813

  • Sale
  • Regular price $260.95
Shipping calculated at checkout.


DESCRIPTION

Two is always better than one, right? We think so, which is why we’re offering a pair of Squadron Sport LED auxiliary lights with wiring harness for one low price.

The Squadron Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts per light, making it ideal for near field, side/backup and scene lighting application. An industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in-purchase protection.USPTO Reg No. 5,766,659

Choose from a variety of lighting patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

Spot: A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7).

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 557813

Dimensions

Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Driving/Combo; Amber; Pair
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Amber
Lighting Modes Hardcoated Polycarbonate
Light Quantity 2
Lens Material Beam
Lighting Quantity 4
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod Pair w/ Wiring Harness
Wattage (W) 30.360
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washabl



INSTALLATION INSTRUCTIONS
