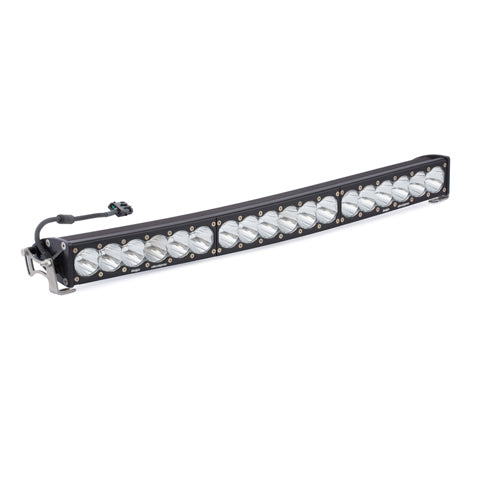

30 Inch LED Light Bar High Speed Spot Pattern OnX6 Arc Series Baja Designs

  • Sale
  • Regular price $1,338.95
Shipping calculated at checkout.


The NEW OnX6 Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Light Pattern:High Speed Spot: A longer and narrower 9 degree beam Focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.(Lighting Zone 4 and 5)

This bar is equipped with BMT Battery Management Technology

  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes

The OnX6 LED Light Bar is Brighter. Bolder. Better.

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 LEDs
  • Wattage/Amps: (High) 278W / 21.7A (Low) 222W / 17.1A
  • Dimensions: 30 x 4.29 x 2.69 inch
  • Weight: 11.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:
OnX6 30 inch LED Light Bar Arc Series
Mounting Brackets
