YAMAHA YXZ1000 & 1000R 2016+ (All Submodels)

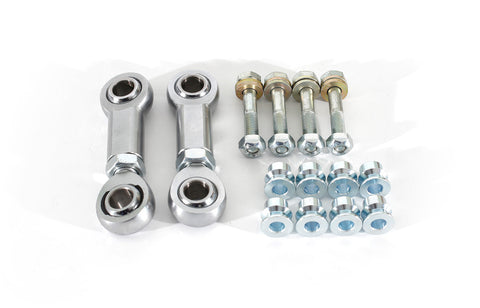

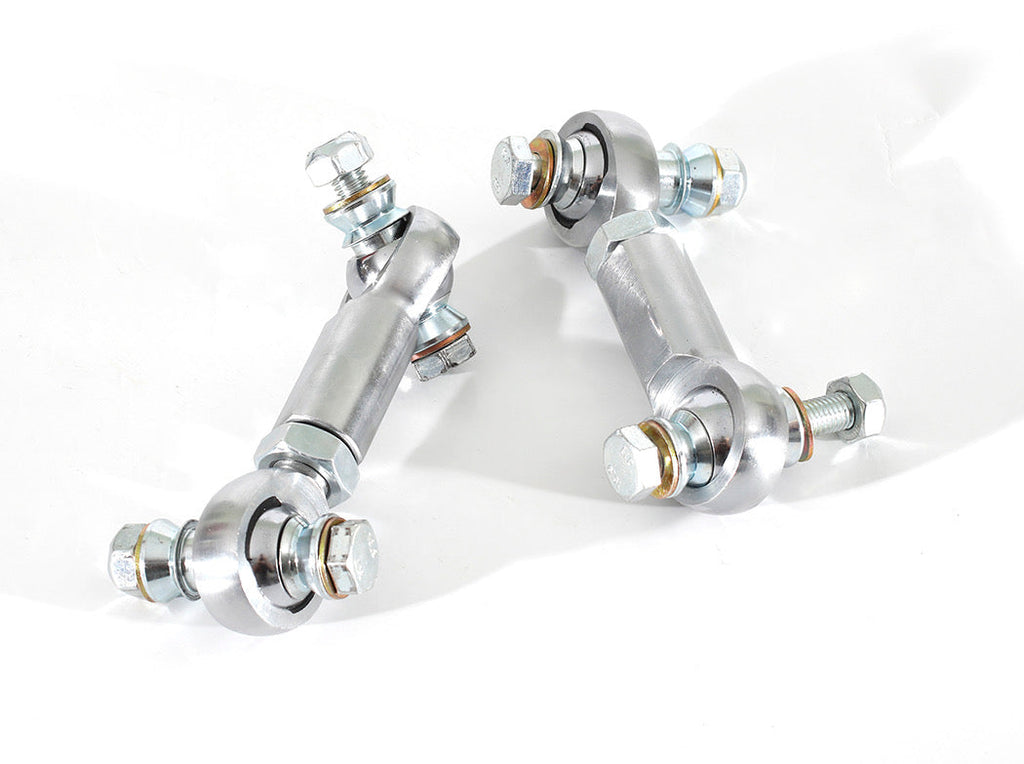

FRONT & REAR ADJUSTABLE SWAY BAR LINKS WITH QUICK DISCONNECT PIN

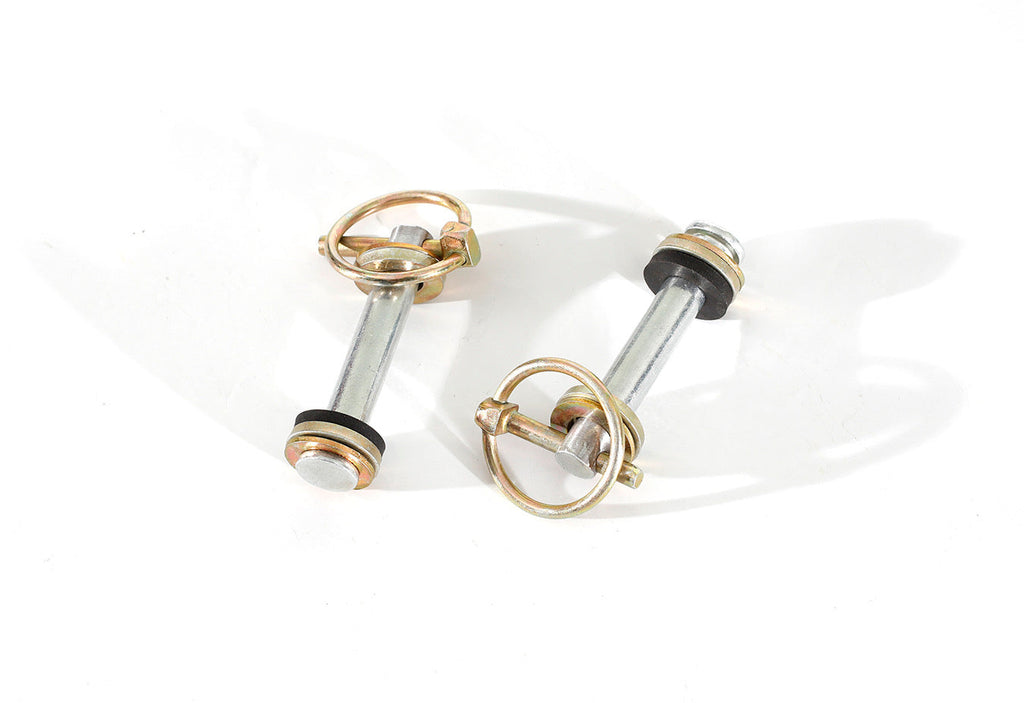

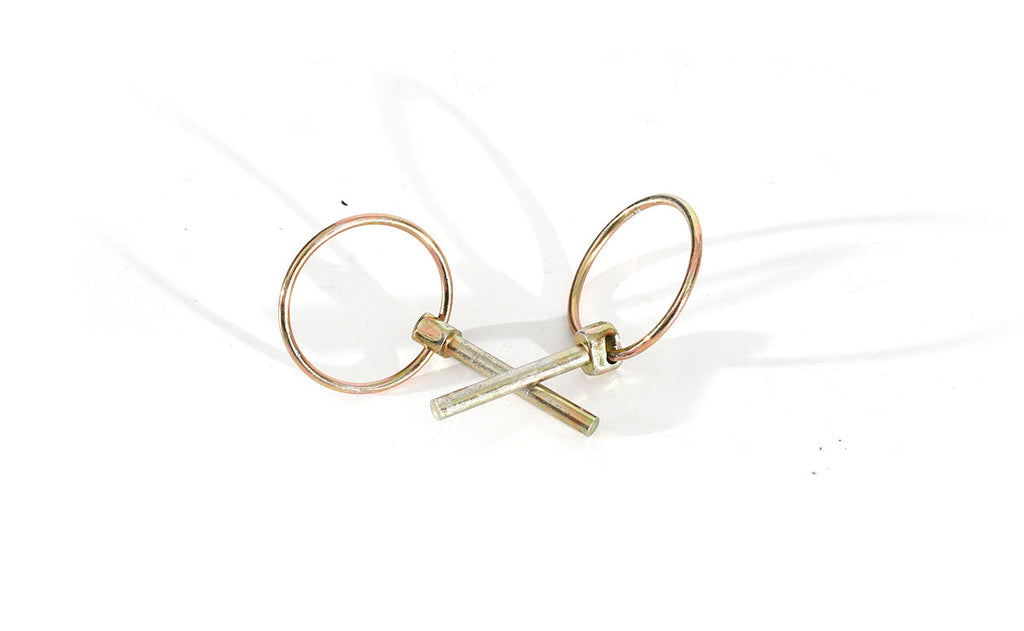

This is our adjustable Sway Bar Link for the front & rear of the Yamaha YXZ! This works on all years of YXZ including: YXZ1000 & YXZ1000R. These also come with a quick disconnect clevis pin! Every sway bar kit comes with the 2 quick disconnect pins, you dont need to order it seperately! These Sway Bar Links come in a PAIR. Quick disconnect pin is a 10mm (front) or 12mm (rear) clevis pin held in with a lynch pin and rubber washers to hold tension and keep the pin tight. Just pull the pin swing the link over and zip tie it out of the way!!
**THIS KIT GIVES YOU THE OPTION TO HARD MOUNT BOTH SIDES WITH BOLTS. OR USE THE SUPPLIED QUICK DISCONNECT PIN!!**

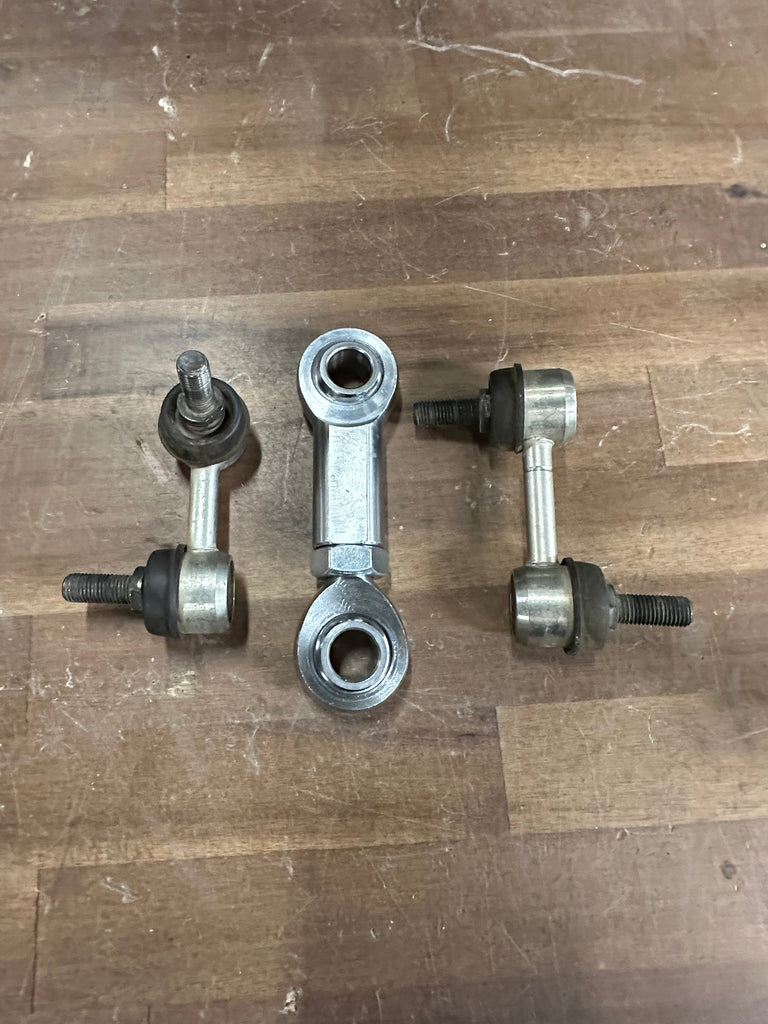

These links are made with 5/8” Chromoly Rod Ends that are Teflon lined for longevity! The 5/8” rod end will give you a tremendous amount strength more than the tiny stock link. Rod ends are Teflon lined to reduce play & increase the length of the life of the rod end!
Our kit uses an actual bolt instead of a stud which is much easier to remove and install. Bolts are high quality M10 & M12 Grade 10.9 paired with hardened high carbon washers and all metal top locking nuts, to insure the hardware never comes loose!
